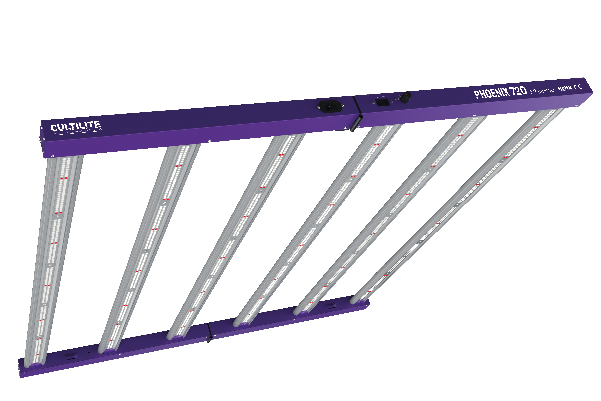

LED Grow Light Cultilite Phoenix 720W: Power and Efficiency for Indoor Cultivation

p>Cultilite PHOENIX 720W LED Grow Light: Cultilite’s answer to professional LEDs at an affordable price. Designed to evenly cover a growbox of about 120 × 120 cm, it combines high efficiency, 0–10V control, and reliability for serious setups.

The Sanan diodes (4000K + 660 nm) are now a mature, high-performance choice: once considered less known than Samsung, today they deliver equivalent quality in horticultural applications, with excellent photosynthetic output and durability.

Available versions

• Phoenix 720W – 2.9 µmol/J (PPF 2088 µmol/s).
• Phoenix 720W – 3.2 µmol/J (PPF 2304 µmol/s).

Why choose it

• Real efficiency up to 3.2 µmol/J to maximize grams per watt.
• Full spectrum 4000K + 660 nm for compact veg and abundant, high-quality bloom.
• Uniform coverage optimized for 1.2 × 1.2 m with high PPFD even at the edges.
• Control 0–10V/PWM dimming and daisy-chain up to 50 fixtures via RJ11.
• Reliability IP65 rating, passive cooling, 50,000 h lifetime.

Technical specifications (shared)

• Power: 720 W
• Input: 220–240 V AC, 50/60 Hz – PF > 0.95
• LEDs: 1728 × 2835 4000K + 84 × 3030 660 nm
• Optics: 120° – IP65 – CRI > Ra80
• Control: 0–10V / PWM, RJ11, group control up to 50 fixtures
• Thermal management: passive (fanless)
• Size/Weight: 1120 × 1060 × 38 mm – 7.45 kg (9.25 kg gross)
• Mounting height: ≥ 15 cm above canopy
• Warranty: 3 years – CE, RoHS

Data certified by official Phoenix 2.9/3.2 manuals and datasheets.

PPFD Maps – 1.2 × 1.2 m test area

The following values are taken from official datasheets at the four most common hanging heights (30/45/60/90 cm). Each table is a 5×5 grid (center in the middle).

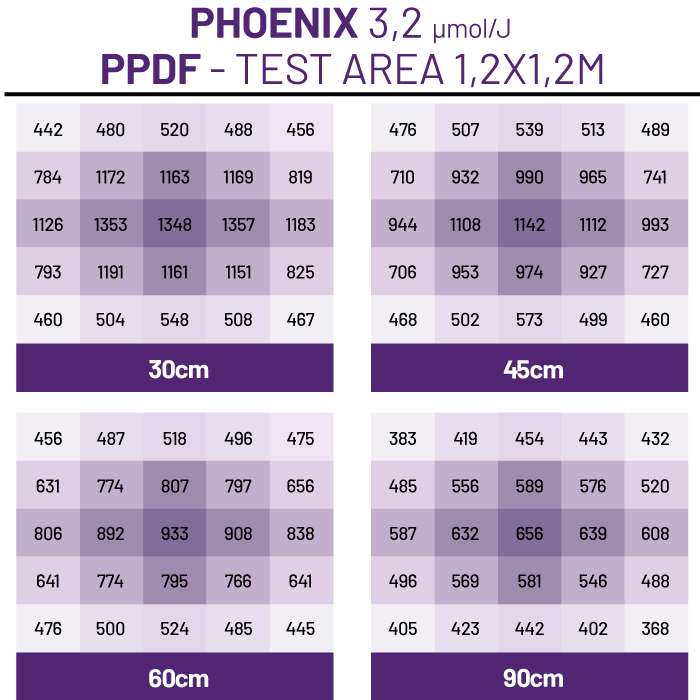

Phoenix 720W – 3.2 µmol/J (PPF 2304 µmol/s)

Height 30 cm

442	784	1126	793	460
480	1172	1353	1191	504
520	1163	1348	1161	548
488	1169	1357	1151	508
456	819	1183	825	467

Height 45 cm

476	710	944	706	468
507	932	1108	953	502
539	990	1142	974	573
513	965	1112	927	499
489	741	993	727	460

Height 60 cm

456	631	806	641	476
487	774	892	774	500
518	807	933	795	524
496	797	908	766	485
475	656	838	641	445

Height 90 cm

383	485	587	496	405
419	556	632	569	423
454	589	656	581	442
443	576	639	546	402
432	520	608	488	368

PPFD data for version 3.2 from official datasheet.

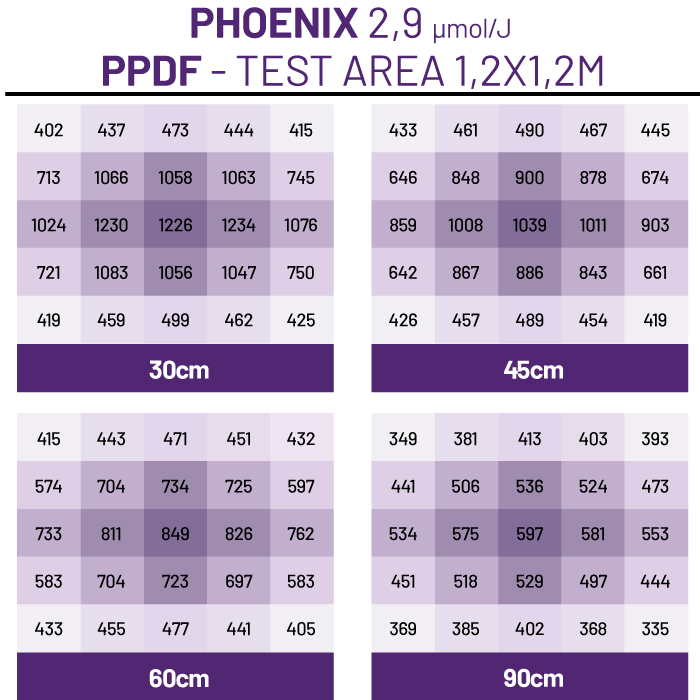

Phoenix 720W – 2.9 µmol/J (PPF 2088 µmol/s)

Height 30 cm

402	713	1024	721	419
437	1066	1230	1083	459
473	1058	1226	1056	499
444	1063	1234	1047	462
415	745	1076	750	425

Height 45 cm

433	646	859	642	426
461	848	1008	867	457
490	900	1039	886	489
467	878	1011	843	454
445	674	903	661	419

Height 60 cm

415	574	733	583	433
443	704	811	704	455
471	734	849	723	477
451	725	826	697	441
432	597	762	583	405

Height 90 cm

349	441	534	451	369
381	506	575	518	385
413	536	597	529	402
403	524	581	497	368
393	473	553	444	335

PPFD data for version 2.9 from official datasheet.

Recommended use

• 120 × 120 cm growbox: one Phoenix for full coverage, 15–35 cm above canopy in flowering depending on strain.
• Humid/dusty environments: IP65 and passive cooling ensure stable performance.
• Dimming: adjust intensity and DLI according to growth stage and VPD.

Note: PPFD values come from tests on a 1.2 × 1.2 m area and are useful for comparison and planning. In real setups, results vary depending on reflections, hanging height, canopy density, and layout.
