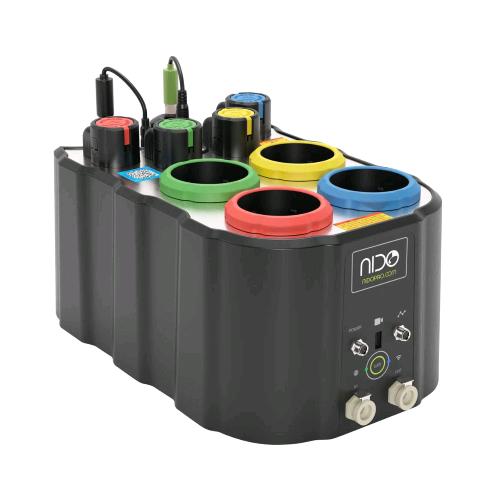

NIDO ONE V2 is the definitive solution for advanced automation of crops. With its ability to manage fertigation, climate and the devices of your greenhouse, it allows you to optimize your cultivation in a simple and precise way.

Installable in a few minutes, NIDO ONE V2 transforms any existing cultivation into a latest generation automated system, respecting the standards of agriculture 4.0

COMPACT
The maximum of innovation in a compact and elegant format.
37x22x20cm

ALL IN ONE
the technological and efficient all-in-one solution for the automation of the water and climate of your cultivation.

ACCURATE
Exceptional accuracy with advanced digital sensors.

COMPATIBLE
Ideal for automating hydroponic, aeroponic and drip irrigation systems

What's inside.
01. NEST ONE V2
02. Cartridges
03. Entrance bulkhead
04. Outlet bulkhead
05. Water pipe
06. Tip diameter 11 mm
07. Tip diameter 30 mm

08. Valve
09. Hose clip
10. NEST plugin
11. NIDO ONE V2 power supply
12. Level sensor
13. Probe cable
14. Access points

15. Access point connection cable
16. Access point power supply
17. pH sensor
18. EC sensor
19. Toothbrush
20. Buffer pH 7.00
21. Buffer pH 4.01

Technical data.
pH
Reading scale: from 4 to 10
Resolution: 0.01pH
Accuracy: 0.1
Calibration: 2 points (7.01 and 4.01) with warning system

EC
Reading scale: 0 to 5.0 mS
Resolution: 0.01mS
Accuracy: 0.1mS
Automatic EC/TDS temperature compensation

Environmental temperature
Reading scale: from 0 to 50 degrees
Resolution: 0.1 degree
Accuracy: 0.2 degree
Thermometer sensor: Texas Instruments

Environmental humidity
Reading scale: 10 to 100% RH
Resolution: 1%RH
Accuracy: 2% RH
Hygrometer sensor: Texas Instruments

Product features
Voltage: 100-220V AC
Max consumption: 3 – 30W
Protection: IPX4
Tank volume: up to 2500 L
Dimensions: 37 x 22 x 20h (cm)
Weight: 2kg

Standard Compensation Tolerances
minimum tolerance EC: 125 µS
minimum tolerance pH: 0.2
Temperature tolerance: 2°
Humidity tolerance: 10%
