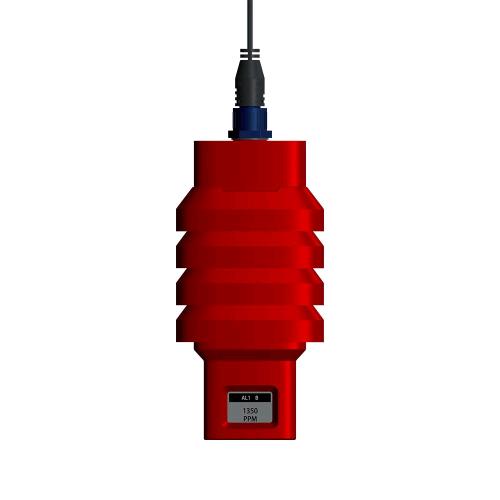

The ability to read up to 30,000 ppm CO² is critical to the proper operation and safety of an emergency CO² system like the Carbon-X. The MBS-K30 is Trolmaster’s newest CO² sensor, which incorporates a NDIR 0-30,000 ppm sensor in a self-aspirated enclosure. The MBS-K30 also features a built-in LCD display that will constantly display the current CO² level (ppm). Each of the zones / rooms monitored by the Carbon-X can have 1 or 2 MBS-K30 CO² sensors installed in order to satisfy local code requirements.

Please Note: The MBS-K30 requires the SPH-1 for supplemental power.

CONTENT
1x MBS-K30
1x 16ft RJ12 Cable
1x T-Shape Splitter

SPECIFICATION
Working Environment: Temperature 32-122°F, Humidity<=90%
Package Dimensions: 275mm(L) x 164mm(W) x 62mm(H)
