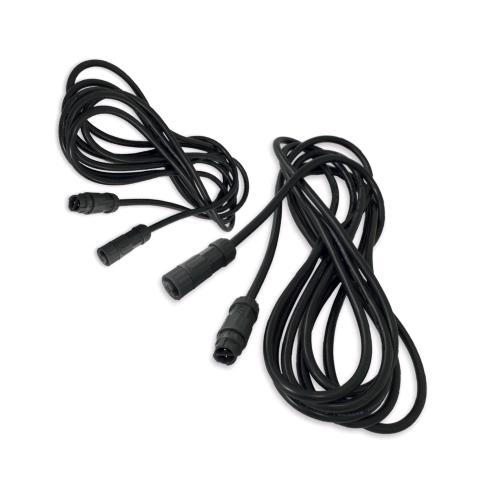

These two 5m long Extension Cables are designed to connect the Lumatek driver and LED fixture, in case the driver is used remote and away of the fixture. Allowing a stable and precise connection without any interference these product is composed by 2 elements:

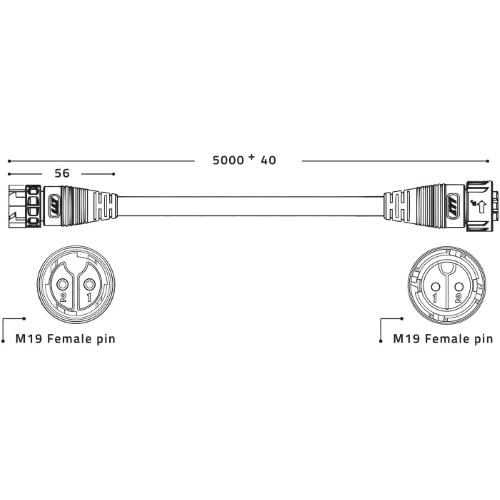

5m Extension Power Cable for LED driver:
M19-2 Self-locking male and female injection molding with 5m extension cable
Wire Gauge: UL SJTW 2x16AWG 300V 105?
Technical/Test Data:
- Withstand voltage between any two poles is 500 VAC, 2mA, test time 3S, no breakdown or leakage current occurs
- The withstand voltage between outer cover and electrode is 500 VAC, 2mA, test time is 3S, no breakdown or leakage current occurs
- Insulation Resistance:100MO@100V
- Temperature Resistance:105?
- Working temperature: -20C-105C
- Storage temperature: -25C-105C
- IP65
- Comply RoHS

- 5m Extension Dimming Cable for LED driver:
M19-2 Self-locking male and female injection molding with 5m extension cable
Wire Gauge: UL 21996 3×22AWG 300V 105? VW-1
Technical/Test Data:
- Withstand voltage between any two poles is 500 VAC, 1mA, test time 3S, no breakdown or leakage current occurs
- The withstand voltage between outer cover and electrode is 500 VAC, 1mA, test time is 3S, no breakdown or leakage current occurs
- Insulation Resistance:100MO@100V
- Temperature Resistance:105?
- Working temperature: -20C-105C
- Storage temperature: -25C-105C
- Comply RoHS
