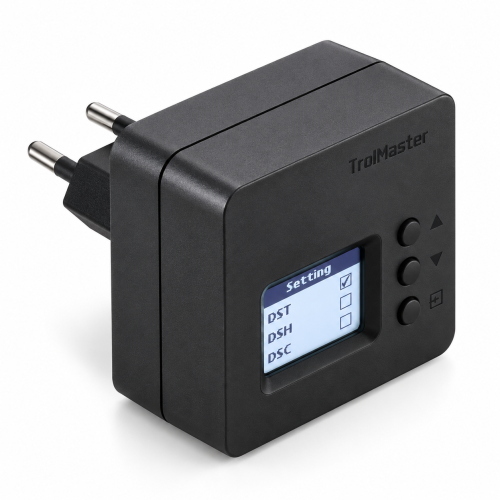

TROLMASTER DSV-2E - 12/24V LOW-VOLTAGE CONTROL STATION

Description

The TrolMaster DSV-2E is a low-voltage output module designed to integrate 12V or 24V AC/DC devices into TrolMaster control systems.

The module can be configured as a device assigned to temperature, humidity, CO2 or timer control, allowing the TrolMaster controller to automatically activate the connected equipment according to the selected settings.

It is particularly suitable for controlling low-voltage equipment such as solenoids, valves, irrigation valves, visual or audible alarms and other low-voltage devices.

Selectable 12/24V Outputs

• 12V DC or 24V DC: up to 0.5 A
• 12V AC or 24V AC: up to 4.8 VA

Once configured, the module automatically powers the connected low-voltage device whenever activation is requested by the TrolMaster control system.

Main Features

• Low-voltage control module
• Selectable 12V or 24V output
• AC and DC output support
• Integrated LCD display
• Easy configuration
• Assignable to temperature, humidity, CO2 or timer functions
• Plug & Play operation
• European DSV-2E version
• 220-240V / 50Hz power supply
• European Type F plug

Applications

• Solenoid valves
• Solenoids
• Irrigation valves
• Alarm systems
• Visual warning devices
• Audible warning devices
• Other compatible 12V or 24V AC/DC devices within the module output limits

Technical Specifications

• Brand: TrolMaster
• Model: DSV-2E
• Type: Low-Volt Station
• Power supply: 220-240V AC, 50Hz
• DC output: 12V / 24V DC, max. 0.5 A
• AC output: 12V / 24V AC, max. 4.8 VA
• Display: LCD
• Assignable functions: temperature, humidity, CO2 or timer
• Connection: Plug & Play
• Version: European
• Plug: Type F

Warnings

Before connecting a device, always check its voltage, AC/DC current type and power consumption. Do not exceed the maximum output ratings of the DSV-2E.
