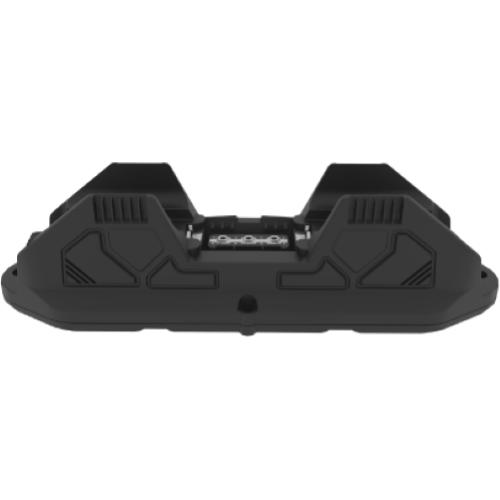

ThinkGrow TLD-2 LED Driver – 90 Watt Modular Driver

The TLD-2 is a modular plug-and-play LED driver designed to operate a single 90-watt LED bar. As a modular driver, it can be combined with additional TLD-2 drivers to create a complete lighting system, adaptable to any space size, and providing up to 1400 μmol of light. Featuring two spectrum control channels, it allows remote control and independent settings for each channel when connected to a TrolMaster Hydro-X or Tent-X system controller. This enables customized lighting spectrum and timing control, making it ideal for professional and hobbyist growers. The TLD-2 is compatible with ThinkGrow FR-1, DR-1, and UV-1 LED light bars.

Key Features:

• Modular Design: Expandable to fit any space size with up to 1400 μmol of light.
• Dual Spectrum Channels: Independent spectrum control for tailored lighting.
• Remote Control: Compatible with TrolMaster Hydro-X and Tent-X controllers for advanced lighting management.
• Plug-and-Play: Simple setup and integration with ThinkGrow light bars.
• Durable Construction: IP56 certification for water resistance and long-term reliability.

Technical Specifications:

• Input Voltage: Autosensing 100-277V~, 50/60Hz
• Input Power: 90W
• Dimensions: 15.15" x 4.07" x 3.58" (L x W x H) | 384.81 mm x 103.38 mm x 90.93 mm
• Weight: 2.03 lbs (0.92 kg)
• Amperage Draw:
  • 120V: Max. 11 units
  • 208V: Max. 19 units
  • 230V: Max. 21 units
  • 240V: Max. 22 units
  • 277V: Max. 25 units
• Water Resistance: IP56
• Operating Conditions:
  • Temperature: 32-104°F (0-40°C)
  • Humidity: 5-95% RH

Compatible LED Bars:

• ThinkGrow FR-1
• ThinkGrow DR-1
