Milwaukee Mi5560 – pH55 + EC60 pH, EC, TDS and Temperature Tester Kit

Description

The Milwaukee Mi5560 is a professional testing kit featuring two portable digital instruments for measuring the main parameters of water and nutrient solutions: pH, electrical conductivity (EC), total dissolved solids (TDS) and temperature.

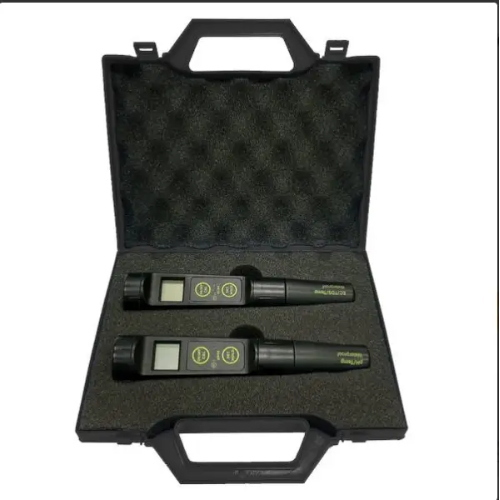

The kit includes the Milwaukee pH55 PRO pH tester and the Milwaukee EC60 PRO conductivity tester, supplied in a durable Milwaukee MA753 hard carrying case for convenient storage, protection and transportation.

Designed for indoor growing, hydroponics, agriculture and nutrient solution monitoring, the kit allows growers to check the key parameters required for proper plant nutrition management.

Both instruments feature dual-level LCD displays, automatic temperature compensation (ATC), automatic calibration and replaceable probes. Their IP65-rated housing provides protection against dust and water splashes, making them suitable for use in humid environments.

Main Features

• Four measurement parameters: pH, EC, TDS and temperature.
• Two independent instruments: Milwaukee pH55 PRO and EC60 PRO.
• Automatic Temperature Compensation (ATC): temperature-compensated measurements.
• Automatic calibration: 1 or 2 points for pH55 and 1 point for EC60.
• Replaceable probes: Mi56P pH electrode and Mi59P EC probe.
• IP65 protection: dust and water-splash resistant instruments.
• Dual-level LCD displays: simultaneous display of measured parameters and temperature.
• Automatic shut-off: after 8 minutes of inactivity.
• MA753 hard carrying case: designed to protect and transport both testers.

Kit Contents

• 1 × Milwaukee pH55 PRO – pH and temperature tester.
• 1 × Milwaukee EC60 PRO – EC, TDS and temperature tester.
• 1 × Milwaukee MA753 hard carrying case.
• Calibration solutions for the testers.
• Batteries and protective caps for both instruments.

Technical Specifications – Milwaukee pH55 PRO

• Measured parameters: pH and temperature.
• pH range: -2.0 to 16.0 pH.
• pH resolution: 0.1 pH.
• pH accuracy: ±0.1 pH at 25°C.
• Temperature range: -5.0 to 60.0°C.
• Temperature resolution: 0.1°C.
• Temperature accuracy: ±0.5°C.
• Temperature compensation: automatic.
• Calibration: automatic, 1 or 2 points.
• Recognized calibration buffers: pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18.
• Electrode: replaceable Mi56P double-junction electrode.
• Power supply: 4 × 1.5 V LR44/A76 batteries.
• Battery life: approximately 300 hours of use.
• Auto-off: after 8 minutes.

Technical Specifications – Milwaukee EC60 PRO

• Measured parameters: EC, TDS and temperature.
• EC range: 0.00 to 20.00 mS/cm.
• EC resolution: 0.01 mS/cm.
• EC accuracy: ±2% full scale.
• TDS range: 0.00 to 10.00 ppt.
• TDS resolution: 0.01 ppt.
• TDS accuracy: ±2% full scale.
• Temperature range: 0.0 to 60.0°C.
• Temperature resolution: 0.1°C.
• Temperature accuracy: ±0.5°C.
• Temperature compensation: automatic, with adjustable ß coefficient from 0.0 to 2.4%/°C.
• Calibration: automatic, 1 point.
• Probe: replaceable Mi59P.
• Power supply: 4 × 1.5 V LR44/A76 batteries.
• Battery life: approximately 100 hours of use.
• Auto-off: after 8 minutes.

Operation and Maintenance

To take a measurement, immerse the appropriate probe in the solution and wait until the reading stabilizes on the display.

Calibrate the instruments regularly using suitable standard calibration solutions to maintain measurement reliability.

pH55 maintenance: keep the electrode hydrated using a dedicated pH electrode storage solution. Never store the electrode in distilled water.

EC60 maintenance: rinse the probe after use and store it clean and dry with its protective cap fitted.

The Mi56P and Mi59P probes can be replaced separately, without replacing the entire tester.
