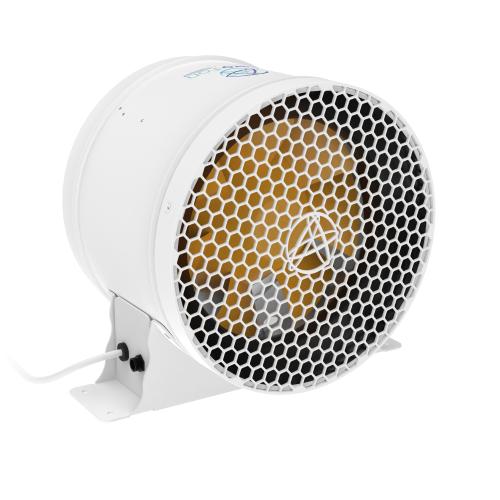

10-Inch Metal Inline Duct Ventilation Fan Pro Model (V-10M)

The 10-Inch Inline Duct Ventilation Fan Pro Model is a powerful and efficient solution for improving air circulation and ventilation in indoor spaces. Equipped with a high-performance motor, it effectively moves large volumes of air, eliminating humidity and stale air to create a fresh and comfortable environment.

Its durable metal construction and compact design make it easy to install in a wide range of duct systems. Ideal for grow rooms and controlled environments, this fan ensures optimal air quality and climate control.

Main Features:

• Compatible with 100-277VAC with automatic voltage sensing
• Advanced controllability when paired with TrolMaster controllers
• Includes mounting plate for easy and secure installation
• 7 blades for optimized airflow performance
• Maximum airflow: 1014 CFM (cubic feet per minute)
• Maximum static pressure: 770 Pa
• Rotating direction: counterclockwise (CCW)
• IP rating: IP44 (dust and splash resistant)
• Operating temperature range: -4°F to 140°F (-20°C to 60°C)
• Mean Time To Failure (MTTF): 50,000 hours at 25°C

Technical Specifications:

• Operating voltage: 100-277VAC, 50/60Hz
• Rated current: 1.94A max
• Input power: 210W max
• Dimensions: 350 x 310 x 245 mm (13.78 x 12.20 x 9.65 inches)
• Net weight: 4.51 kg (9.94 lb)

Package Contents:

• 1x 10-Inch Metal Inline Duct Ventilation Fan Pro Model
• 1x ECS-7 Cable
