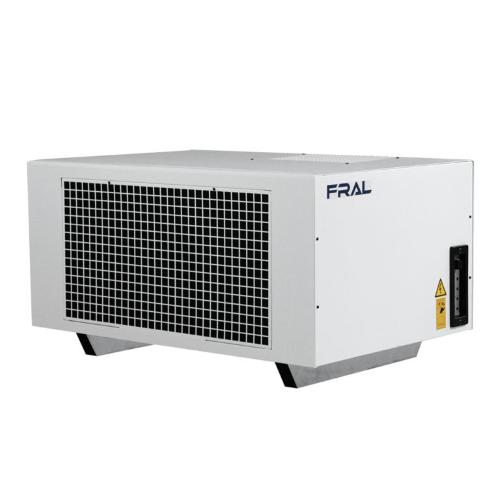

FRAL FD240 – Industrial wall-mounted dehumidifier

Main features

• Heavy-duty hot-dip galvanized steel casing with epoxy powder coating
• Dehumidifying capacity: 240 L/24h (32°C – 90% R.H.)
• Double-inlet centrifugal fan with 2000 m³/h air flow
• Hot gas defrost system for low temperature operation
• Corrosion-resistant condensate collection tray with fixed drain (3/4" M connection)
• High efficiency air filter, washable and easy to replace
• Protection class IP21 (IP44 available on request)
• Microprocessor control for defrost cycles and alarm management
• Built-in humidistat and provision for remote digital humidistat
• Three-phase power supply 400/3N~/50
• Eco-friendly refrigerant R410A

Description

The FRAL FD240 industrial dehumidifier is designed for humidity control in commercial and industrial environments where continuous reliability and low maintenance are required. The robust galvanized steel cabinet with epoxy powder coating ensures excellent resistance to harsh environments, while the removable panels allow fast access for inspection and service.

With its high dehumidification capacity (240 L/24h) and double-inlet centrifugal fan, the FD240 is ideal for warehouses, storage areas, technical rooms, production facilities and environments dedicated to the preservation of food products or industrial goods where relative humidity must be kept under control. The hot gas defrost system allows the unit to operate at low temperatures down to about 0.5°C (or -0.5°C with the optional low-temperature configuration), making the FD240 suitable for demanding applications.

Technical specifications

• Nominal dehumidification capacity (32°C – 90% R.H.): 240 L/24h
• Average nominal power input (26.7°C – 60% R.H.): 3.7 kW
• Maximum power input (35°C – 70% R.H.): 4.3 kW
• Maximum current draw (35°C – 70% R.H.): 9.1 A
• Starting current (L.R.A.): 50 A
• Sound pressure level (3 m, free field): 55 dB(A)
• Refrigerant: R410A
• Condensate drain connection: 3/4" M
• Operating temperature range: 7÷35°C
• Operating temperature range with hot gas defrost: 0.5÷35°C
• Operating temperature range (low-temperature option): -0.5÷35°C
• Operating humidity range (T < 30°C): 45÷99% R.H.
• Operating humidity range (30÷32°C): 45÷90% R.H.
• Operating humidity range (32÷35°C): 45÷70% R.H.
• Power supply: 400/3N~/50
• Nominal air flow: 2000 m³/h
• Available static pressure: 100 Pa
• Width: 976 mm
• Depth: 682 mm
• Height: 580 mm
• Weight: 72 kg
